We Have a Winner!

In my post on Brandis Astronomical sextants, I offered a lifetime GoG blog subscription to the first person to explain the purpose of the small spirit level attached to the index arm of sextants of this type.  It took only four days for a reader, whom I will identify as ‘C.V.’ [1], to come up with the answer to this puzzle.

C.V. referred me to two books, 'Wrinkles in Practical Navigation', published in 1918, and 'Hints to Travelers', published in 1871 [2,3].  Apparently, the idea of putting a spirit level on the index arm of a sextant originated with Karl Friederich Knorre (1801-1883), Professor of Practical Astronomy at the School of Navigation in Nikolaev, a major Black Sea port city in what is now Ukraine.  The purpose of the spirit level was to allow someone measuring the altitude of a celestial body with the aid of an artificial horizon to ensure that the measurement was being made correctly.  An artificial horizon is a container holding a pool of reflective liquid, usually mercury, that allows a sextant user to measure the altitude of a celestial body when a proper horizon, such as can be seen on a clear day at sea, is not available [4].  The user first locates the image of the celestial body in the reflective surface of the artificial horizon and then ‘brings down’ into alignment with it the image of celestial body reflected from sextant’s index mirror; dividing the resulting angle by two gives the altitude of the celestial body.  Apparently, it was fairly easy to mistakenly ‘bring down’ the wrong celestial body when a similar-looking celestial body was close in the sky to the correct one.  The index arm spirit level prevents the user from making this error.  Its angle relative to the index mirror is such that the level’s bubble will ‘play’ when two images of the same celestial body are in alignment.

Many thanks to C.V. for solving the puzzle of the index arm spirit level.  Congratulations on your lifetime subscription to the GoG blog, C.V.!  To all my other readers, there's still hope: A second lifetime subscription is still available to the first person to find a surviving example of a Brandis Astronomical sextant.

+~+~+~+
[1] Although C.V. has given me permission to use his full name, in the name of protecting the innocent only his initials will be used
[2] 'Wrinkles in Navigation' can be downloaded at: https://archive.org/stream/wrinklesinpracti00leckrich#page/n7/mode/2up

[3] 'Hints to Travelers' can be downloaded at:
http://galton.org/essays/1870-1879/galton-1871-jrgs-hints-travellers.pdf
[3] More on artificial horizons can be found at: http://www.longcamp.com/horizon.html

Sunday, December 18, 2016

Brandis Sextant Taxonomy, Part Four: Astronomical Sextants

A fourth type of sextant that Brandis was making around the time of the first World War was the Astronomical Sextant.  As in the last three posts, Brandis Catalog No. 20, published sometime between 1915 and 1917, provides a nice illustration of this sextant type.

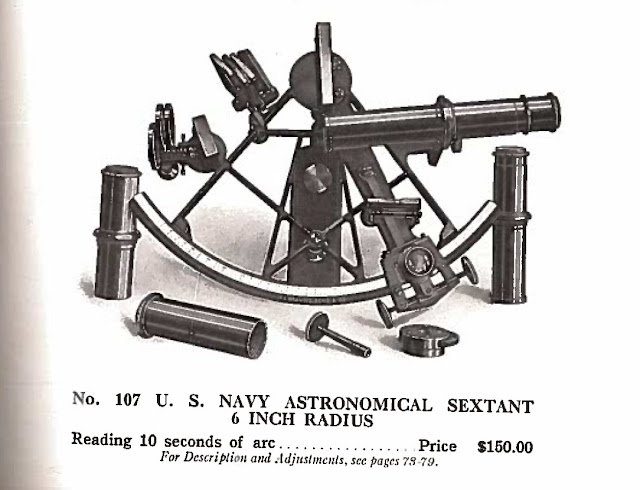

The catalog description tells us that these sextants have a 6-inch radius and that they provide a 10-second measurement precision.  What stands out to me is the frame pattern, which is quite different and more aesthetically pleasing to my eye than the frame pattern shared by the three sextant types discussed in my earlier posts in this series.  Astronomical sextants also appear in the 1895 Brandis catalog, and here we are told that they owe their frame pattern to a Professor Harkness.  This must be Professor William Harkness, who among other things was Astronomical Director at the U.S. Naval Observatory and inventor of numerous astronomical instruments [1].  As an aside, the 1895 Brandis catalog refers to the plainer Brandis frame pattern of the other Brandis sextant types we've looked at as the ‘Gambey Pattern', presumably after  Henri Prudence Gambey, a French instrument maker of the early 19th century [2].  The Smithsonian has in its collection a 19th century Gambey sextant made for the U.S. Coast and Geodetic Service that looks to be a very close match for a Brandis high grade sextant in terms of its frame pattern and other features [3].


I’ve seen forty-five or so Brandis sextants and not one of them is an astronomical sextant.  However, the Smithsonian has two sextants made by Stackpole and Brother (Stackpole #1765 and #2258) that look very much like a Brandis astronomical sextant.  An excellent high-resolution photograph of #1765 can be found on the Smithsonian’s website [3].  It may be significant that F.E. Brandis worked for Stackpole and Brother for several years before founding his own instrument company [4].

An unusual feature we can see in both Brandis catalog illustrations and in the photo of Stackpole #1765 (the photo of #2258 is too poorly resolved to tell) is that these sextants have a bubble level attached to their index arms.  A bubble level attached to a sextant’s index arm wouldn’t allow a user to hold the sextant level in the absence of a visible horizon as in a Byrd sextant, so what purpose these levels serve eludes me.  The description of Stackpole #1765  at the Smithsonian’s website has this to say about the level: “The sextant also has a small bubble level on the index arm. William Harkness, the American astronomer who introduced this feature, said that it "proved a very great convenience and saved much time and trouble.”  How the index arm level saved time and trouble we are not told, unfortunately.  The only other sextant I’ve ever seen with a bubble level on its index arm is a Cary sextant that can be seen on the Tesseract website [5].  The Cary sextant’s bubble level is perpendicular to the long axis of the index arm, while in the case of the Brandis and Stackpole sextants the bubble levels are not perpendicular to that axis.

The first person to explain to me what what function these index arm bubble levels served gets a free lifetime subscription to the Ghost of Gardner blog.  The same goes for the first person to find a photo of a surviving Brandis astronomical sextant.

Comments, corrections, additional relevant facts, differing viewpoints, etc., are always welcome (no one will be banned, blocked, or castigated for offering differing opinions).  Send to gardnersghost@gmail.com
+~+~+~
[1] Harkness' obituary appears in the April 17, 1903 issue of Science, the journal of the American Association for the Advancement of Science. In 1893, Harkness was president of the AAAS. See: https://books.google.com/books?id=HY8CAAAAYAAJ&pg=PA601&dq=william+harkness&hl=en#v=onepage&q=william%20harkness&f=false
[2] http://americanhistory.si.edu/collections/search/object/nmah_1183824
[3] http://amhistory.si.edu/navigation/object.cfm?recordnumber=1183824
[4] http://amhistory.si.edu/navigation/maker.cfm?makerid=35
[5] http://www.etesseract.com/Navigation/Navigation.html

Wednesday, December 7, 2016

Brandis Sextant Taxonomy, Part Three: Octants

A third type of sextant that appears in Brandis Catalog No. 20 is the ‘U. S. Navy Octant’, shown below.  We are told that it has a radius of 7 inches and provides a measurement precision of 30 seconds, and we can see that its frame is comprised of three radial arms crossed by two curved stiffener braces.

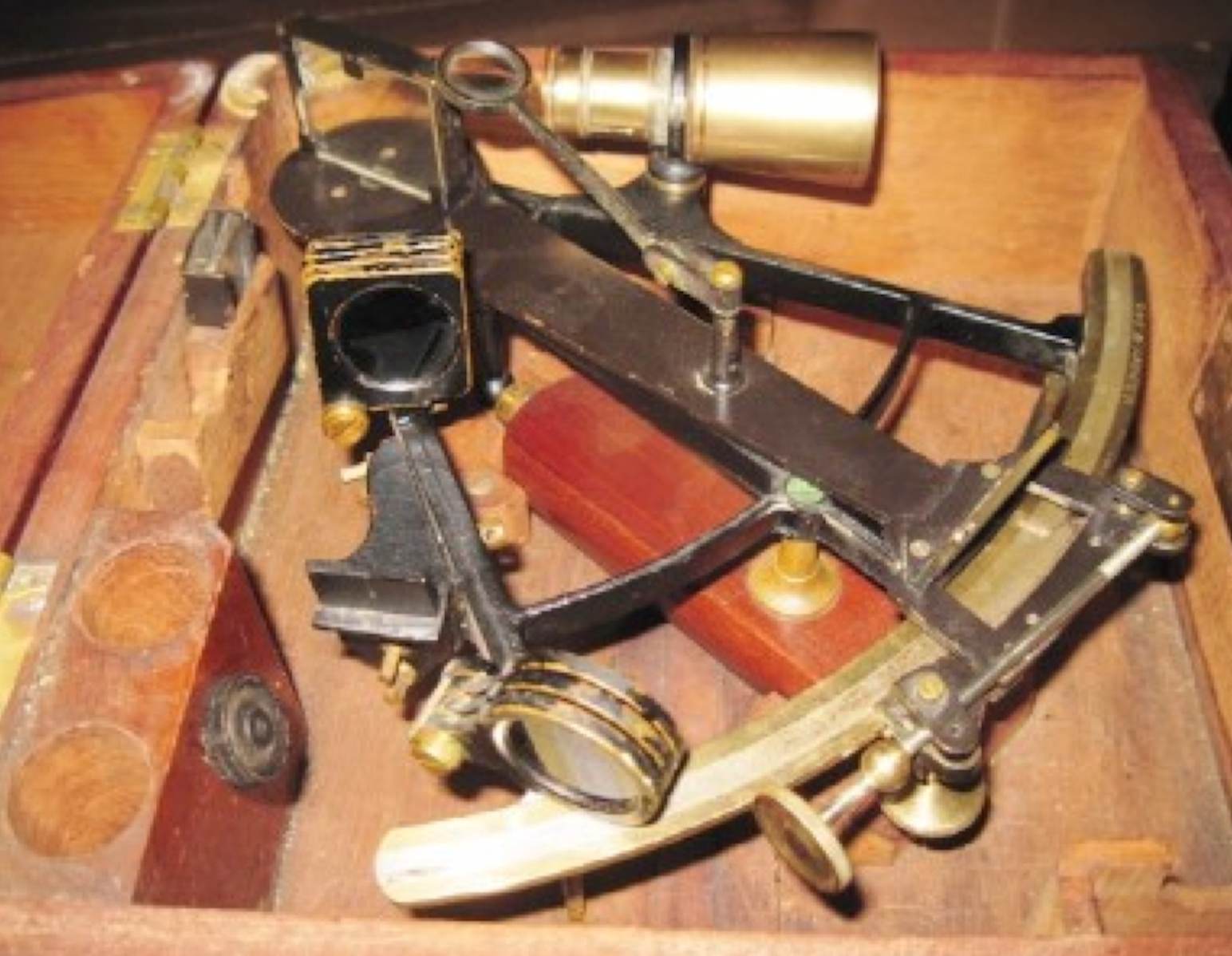

Out of the forty or so Brandis sextants that I’ve seen well enough to identify as to type, only one, Brandis #2763/USNO #348, shown below, appears to be an octant (note: see update below). A dated sales label in the box for Brandis #2763/USNO #348 suggests that it was made in 1911 [1] .


I was surprised to learn that Brandis was still making octants into the early decades of the twentieth century [2].  All of the octants I’d seen in museum collections were made in the 19th century or earlier, and while researching the Brandis sextants I’d come across a recommendation in the U.S. Naval Observatory’s Annual Report for fiscal year 1890 that “no more octants to be purchased or repaired, and none of the latter to be issued after the present supply be exhausted”.  Yet it seems that the U.S. Navy ignored the advice of the Naval Observatory, perhaps motivated by their price compared to other types of sextants.  According to Brandis Catalogue No. 20, octants could be purchased for $95, while high grade and surveying sextants went for $130 and $120, respectively.

I note that Brandis’ competitor Keuffel & Esser also lists an octant “as made for us for the U.S. Navy” in its 1913 catalog [3] but it no longer lists an octant in its 1921 catalog [4], so Keuffel & Esser stopped making octants sometime around World War One, presumably because there was no longer customer demand for them.  Of eight or so sextants I’ve seen that were made by Brandis’ competitors, one of them, made by Keuffel & Esser some time before the first World War, is an octant.

After the first World War, octants made a comeback of sorts for use in air navigation. But these were an entirely different kind of instrument from nautical octants like Brandis #2763/USNO#348.
+++
UPDATE (5/30/2018): A second Brandis Octant has come to light on eBay. Its Brandis serial number is 2679, but no indication in the eBay listing of a Naval Observatory number.  A Brandis label in its box indicates a delivery date of 1/19/11.

Comments, corrections, additional relevant facts, differing viewpoints, etc., are always welcome (no one will be banned, blocked, or castigated for offering differing opinions).  Send to gardnersghost@gmail.com
---
